Hose restraints Basket Grip Type R
Short Description:
Whip Stops are a great way to restrain high pressure hoses. Whip Stops have a unique design that prevents the very real and unpredictable whipping of a high pressure hose during a failure.

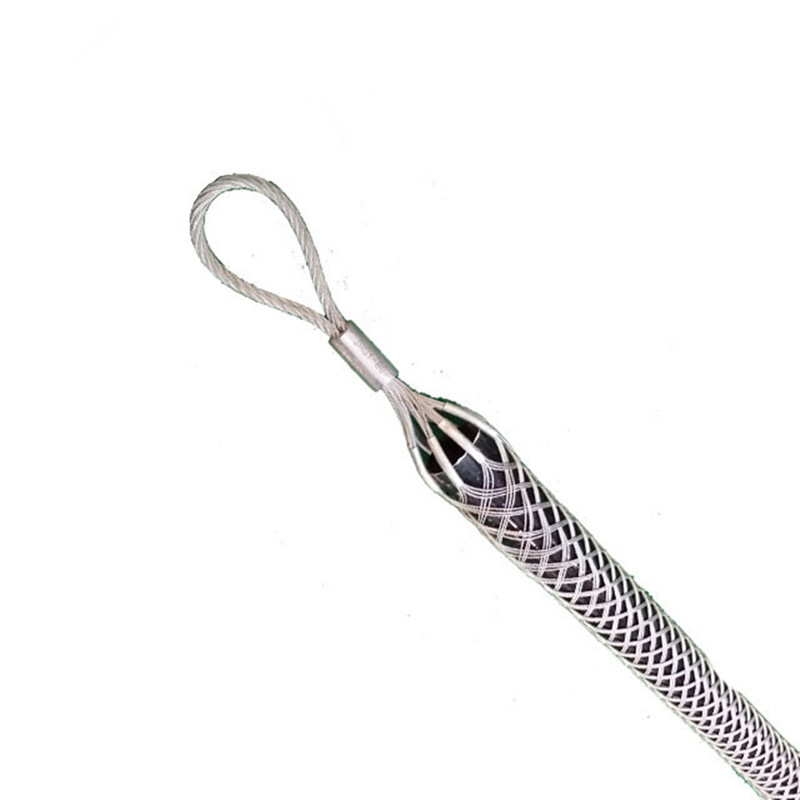

Cable socks (also called cable grips ,cable stockings,pulling grips,support grips) provide a means of cable pulling into ducts, trenches .

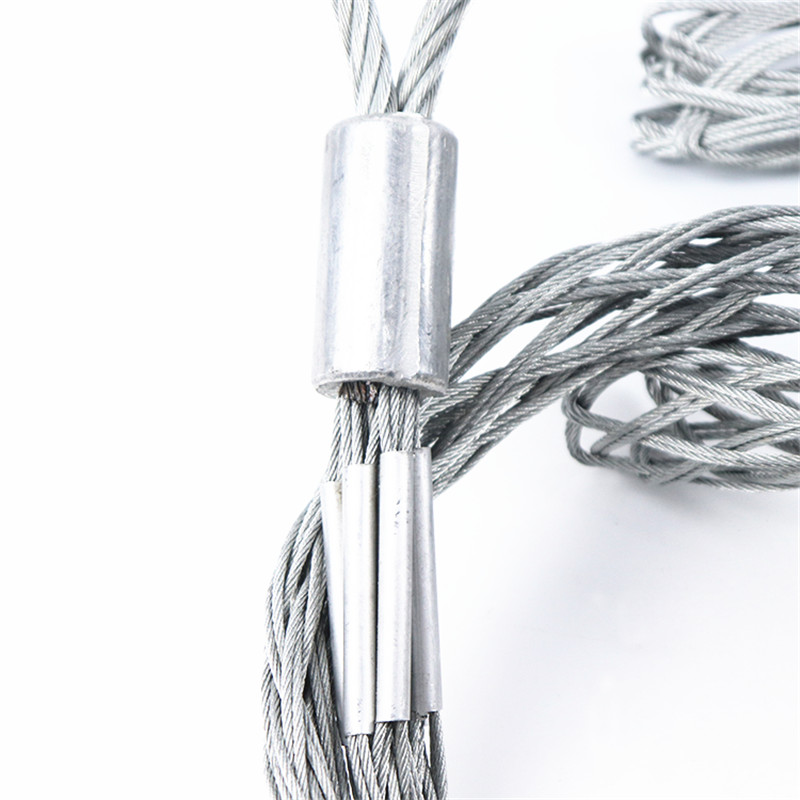

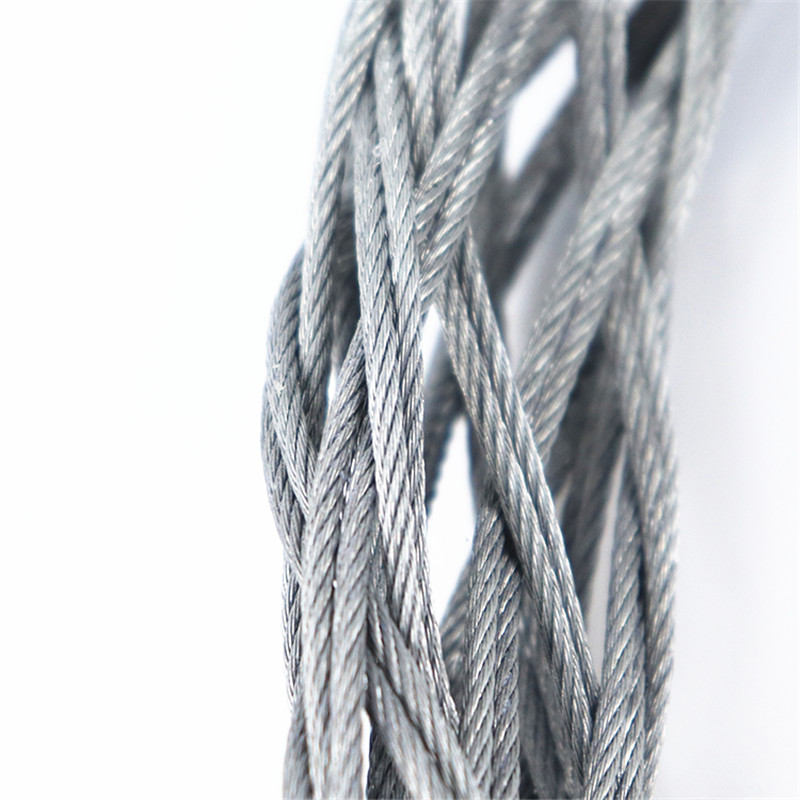

Cable socks are manufactured from high tensile galvanised and stainless steel wire rope,incudes
includes single eye cable socks, double eye cable socks, lace up cable socks, non-conductive cable socks and open ended cable socks,Single-head, single strand cable socks
Specifications
cable pulling grip; mesh sock grip
Cable pulling grip; cable sock grip; cable stocking;pulling grips;
Application:used for cable hauling in power line construction;
Wire and cable connector grips are used where old wire and cables must be replaced by new ones.
The connection is made quickly, and can be undone just as quickly.
Connector grips are excellently suited for e.g. pulling new wire into minings, cranes and aerial railways.
They speed up the replacement of old power cables. New lines are connected with old cables and are
then pulled through.
| Range (mm) | Approx. Break Load (kg) | Lattice Length (mm) |
| 6-12 | 3170 | 787 |
| 12-19 | 4760 | 1143 |
| 19-25 | 6395 | 1092 |
| 25-32 | 11340 | 1651 |
| 32-38 | 14065 | 1499 |
| 38-44 | 14065 | 2083 |
| 44-57 | 22230 | 2083 |
| 51-63 | 22230 | 1829 |
| 63-76 | 22230 | 1829 |
| 76-89 | 22230 | 1880 |
| 89-102 | 22230 | 1930 |
Application field
* Purpose: Used for traction installation of power cables and communication cables, for traction of wires during construction of power transmission and transformation lines.
Purpose: It can be used to connect the traction wire rope when the wire, steel core and aluminum strand are laid out, and release the twisting force of the wire rope.
Purpose: It is used to connect wire rope when it is unwinding, and can pass all kinds of unwinding blocks.
At present, cable net sheath is also used in the oil field mainly for the replacement of crane wire rope. When used, one end of the cable is connected with the new rope and the other end is connected with the old rope through the hoisting rotation of the crane, which can replace the old rope greatly saving labor.
