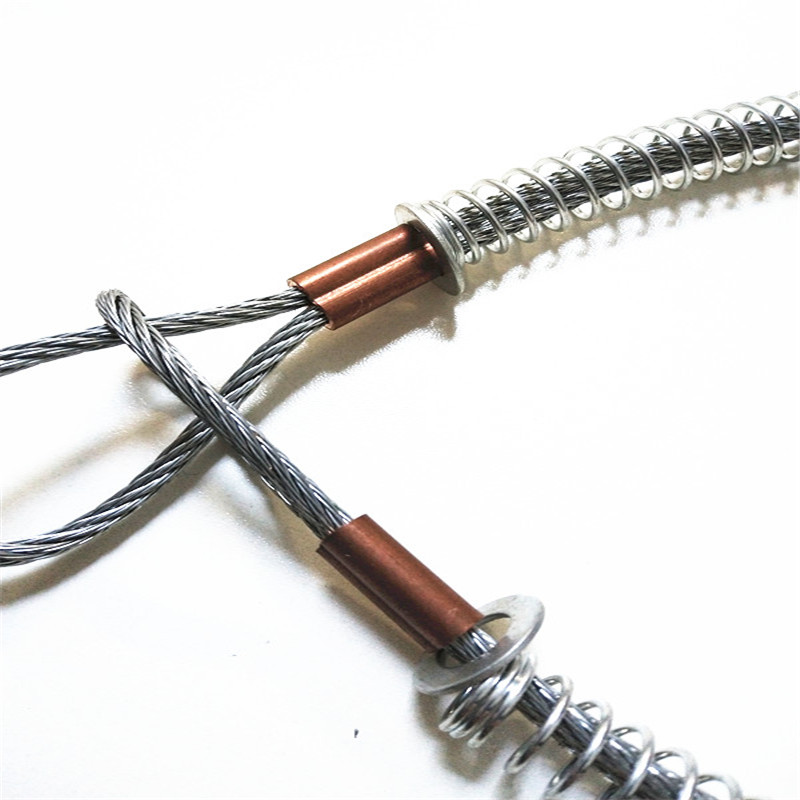

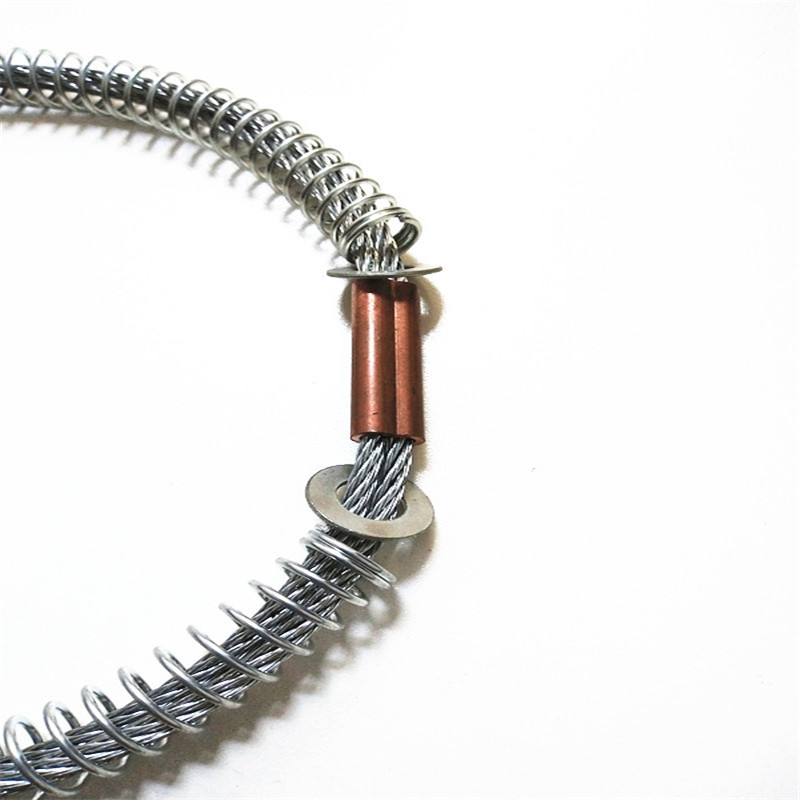

whip check safety cable with copper bush
Short Description:
Whipcheck is a safety device used to prevent hoses from thrashing around if they break or separate under pressure. It consists of a length of strong steel cable with loops on each end that are secured around the hose and its fitting using clamps or wire rope clips. This helps to contain the hose in case of failure, preventing it from flailing around and potentially causing injury or damage. Whipchecks are commonly used in industries where high-pressure hoses are used, such as mining, construction, manufacturing, and oil and gas.
Whipcheck whip check safety cable Whipcheck is a safety device used to prevent hoses from thrashing around if they break or separate under pressure. It consists of a length of strong steel cable with loops on each end that are secured around the hose and its fitting using clamps or wire rope clips. This helps to contain the hose in case of failure, preventing it from flailing around and potentially causing injury or damage. Whipchecks are commonly used in industries where high-pressure hoses are used, such as mining, construction, manufacturing, and oil and gas.

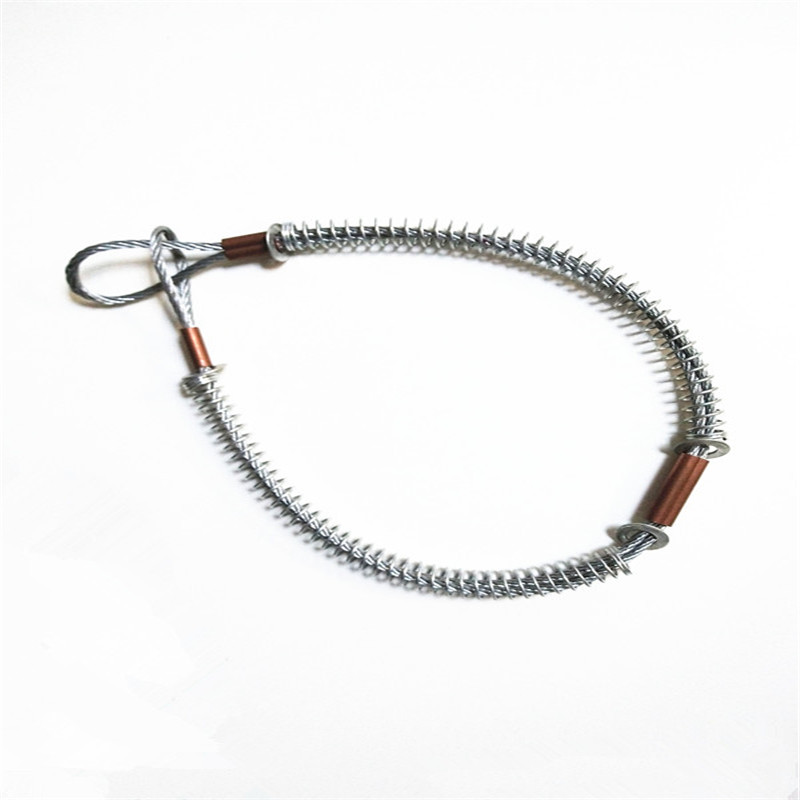

whipcheck – safety slings are a positive safe – guard for hose connections. These strong steel cables prevent hose whip in case of accidental separation of coupling or clamp device. “whipcheck” reaches across the hose fittings to provide stand-by safety for hose. Spring loaded loops in cable ends open easily to pass over the couplings for firm grip on hose, as shown. They have been thoroughly tested with years of service.
There are various sizes of whipchecks manufactured by LH. All materials used for in the manufacturing process conform to SABS & ISO standards, Materials being the cable, ferrules ect.
How does a Hose work?
When an unintentional separation occurs, it is because of compressed air or fluid building up in the hose. When this happens, the hose will furiously whip because of the built up pressure. Through the use of equipment, hose whipping will not occur - the strong galvanised stainless steel cable helps to prevent a whip through the easily fitted loaded spring loops, which grip a hose securely and firmly.
When do I need to use a Whipcheck?
A can be used with a hose or other high-pressure operation that has compressed air or fluid going through it. They can be found in applications such as coal mining, gardening and valeting.
Size Specifications：
| product name | size | Material | Wire rope diameter(mm) | Overall length(mm) | Spring lengthMM) | Spring outer diameter(mm) | Spring thickness(mm) | Suitable pipe diameter size | Destructive power(KG) | ||
| whipcheck | 3/16" *28" | Galvanized carbon steel | 5 | 710 | 240 | 18 | 2.0 | 1/2”-2” | 1400 | ||
Product construction and testing
3/16" * 28", They are manufactured from 5mm galvanized steel wire rope to a safe dead load of 1.5 tonne.
Safety Cables are available in two cable diameters and a number of different configurations. offer additional safety for compressor hoses in enclosed or critical enviroments.
Usage
Whip check safety cable is designed specially to prevent hose connections from whipping if the hoses or couplings failed to hold. The failure usually occurs with high pressure and will make hoses or equipment shake violently which may cause serious injury for people or the nearby coupling & equipment.
Package
